POWERING EXPERIENCES
CLIENT PROOF · v1
POWERING EXPERIENCES
"Please create a new video board breakdown with the same ratio as the previous version but without the bottom GIP strip. There should still be 3 ad panels in each pillar. Depending on the play clock working or not, we may need to keep it on one of the ad panels. 4080x1056 is full board."

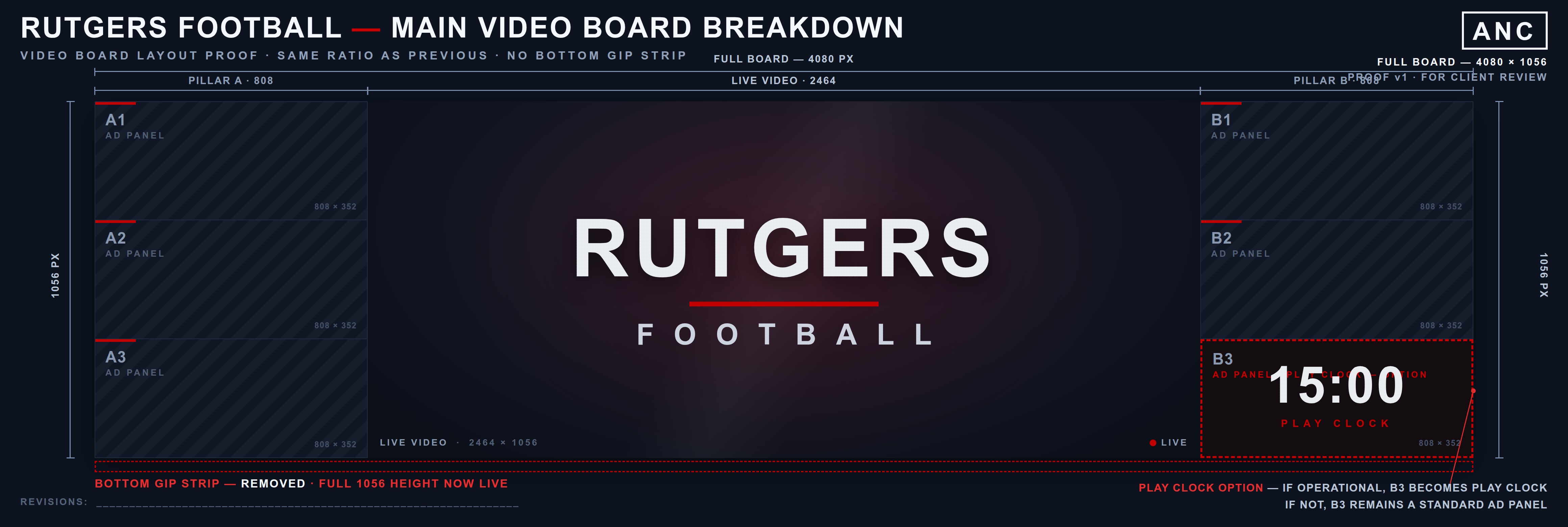

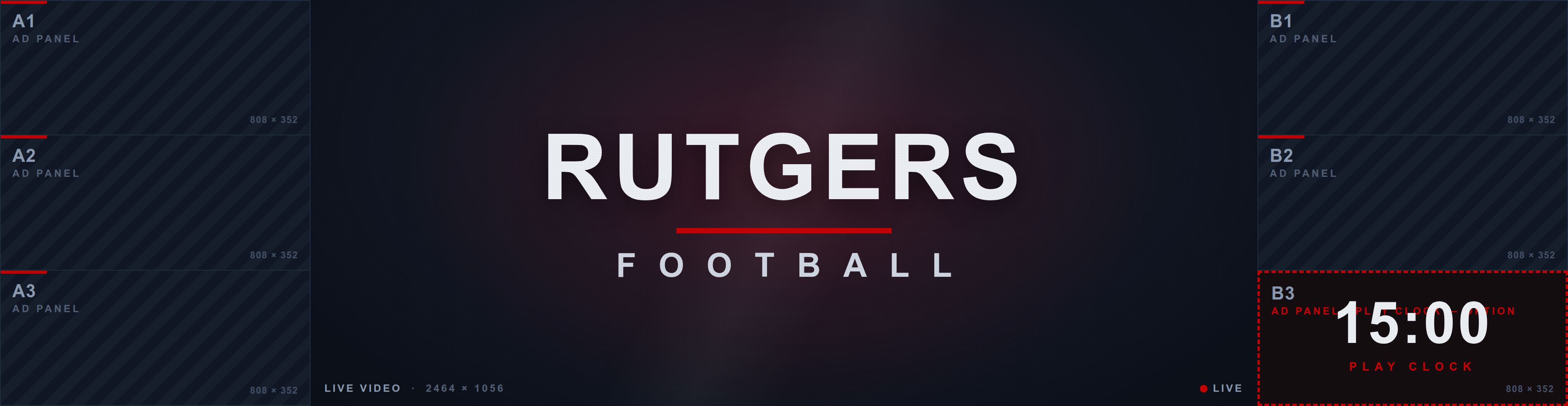

| Zone | Position | Size | Content |
|---|---|---|---|
| Pillar A — left | x 0 → 808 | 808 × 1056 | 3 stacked ad panels · A1 / A2 / A3 · 808 × 352 each |
| Live video — center | x 808 → 3272 | 2464 × 1056 | Centered live video · full-board height |
| Pillar B — right | x 3272 → 4080 | 808 × 1056 | 3 stacked ad panels · B1 / B2 / B3 · B3 doubles as play-clock option |
| Bottom GIP strip | — | — | Removed per request — full 1056 height now live |
Per the request, the layout keeps one ad panel (B3) reserved as the play-clock slot. If the play clock is operational, B3 becomes a live play-clock readout; if not, it runs as a standard ad panel with no layout change.
The previous version's bottom GIP strip is dropped. The ratio of the board is unchanged — pillars and live video now use the full 1056-pixel height, and every ad panel grows accordingly.
